The Motovario worm gearbox consist of worm gear reducers which provide competent, innovative solution to each and every power applications .The gear reducers are ATEX certified ,were designed and manufactured in compliance with Directive ATEX 2014/34/UE. Motovario provides technologically advanced solutions in the transmission components field for industrial and civil applications worldwide. Reliability, resilience and versatility are the distinctive features of Motovario worm gearbox , the most qualified solution to any power transmission requirement.

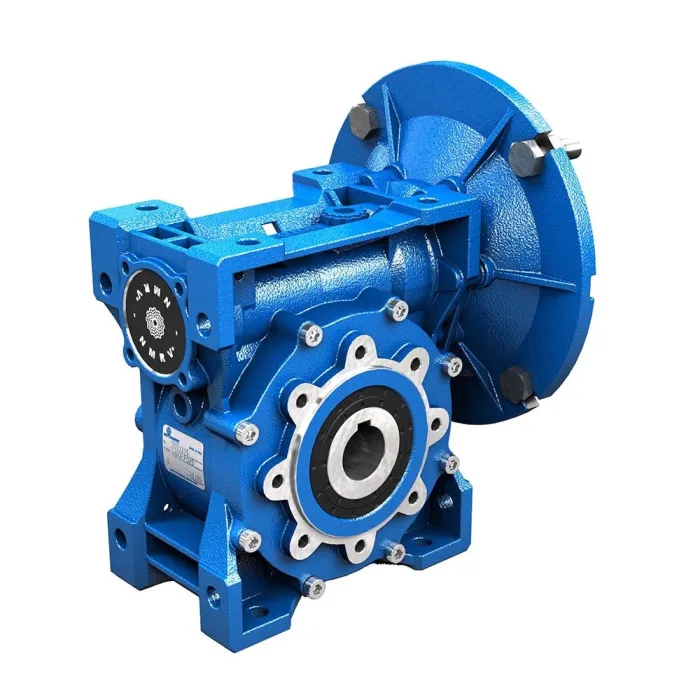

NMRV-P 063 40,0 200*19 25 U MV NMRV Power Size: 063 Ratio (i): 40 Input dim.: 200×19 (IEC80 B5) Motor adapter flange dim.: 200 Motor adapter wrom Diam.: 19 Hollow output shaft dim.: D.25 Mounting position: U – Universal Oil plugs: No plugs (Standard) Supplied with lubricant ENI TELIUM VSF. Output oil seal: NBR-Nitrile Input oil seal: ACM-Polyacrylate Output bearings: Ball bearings Input bearings: Ball-Ball bearings Lubrication: Eni Telium VSF 320
Die-cast aluminium alloy cases for gears
Cast iron or aluminium casing for reducers
Loading capacity in accordance with ISO 14521, DIN 3996, BS 721, AGMA 6034, ISO 6336, DIN 3990, DIN 743, ISO281
Heat resistant and Corrosion resistant
ATEX, IEC certified
Cast iron or aluminium casing for reducers
Loading capacity in accordance with ISO 14521, DIN 3996, BS 721, AGMA 6034, ISO 6336, DIN 3990, DIN 743, ISO281
Heat resistant and Corrosion resistant
ATEX, IEC certified
